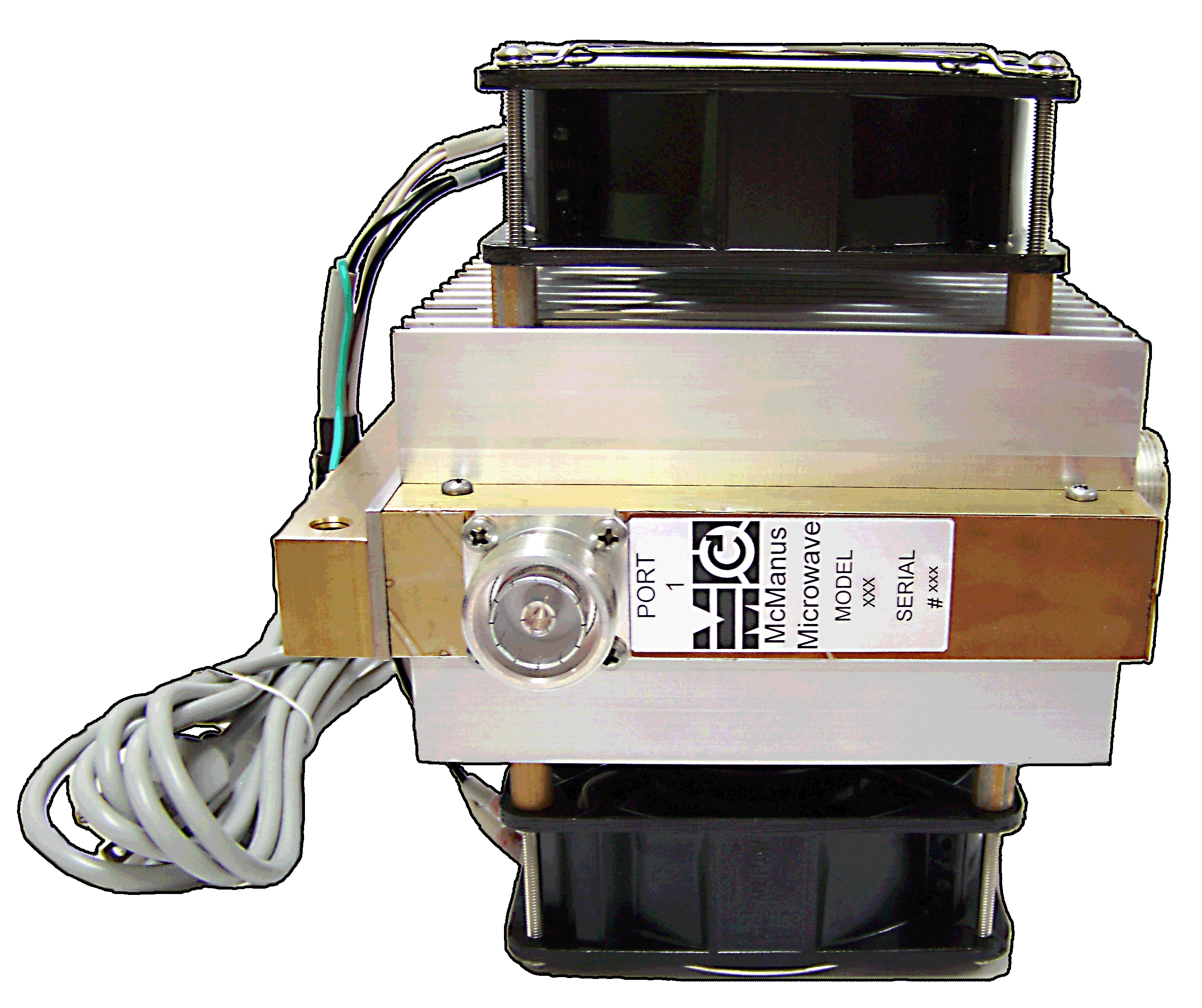

Model 194

	POWER:	10 KW PEAK, 4 KWCW AVG.
	FREQUENCY:	360 to 384 MHz
	ISOLATION (MIN.):	20.0 dB
	INS. LOSS (MAX.):	0.20 dB
	VSWR (MAX):	1.22:1
	SIZE:	6" x 6" x 1.25" + Heatsink & Fan
	CONNECTORS:	7/16 (3) FEMALE
	OPERATING TEMPERATURE:	+20ºC to +27ºC

Note:
If you are intrested in purchasing an existing model, upon ordering, you will be issued a new model number with Serial numbers starting at 101.
